Some Kit Order Links on individual pages are no longer functioning. We apologize for the inconvenience during this website update. If the ones on your page are not functioning, please verify what kit is available for your unit and then click this link KIT LIST PAGE FOR ALL GENERATORS AND ENGINES to go to this temporary kit listing page.
If you're not sure what each type of kit means, click on the Quick Help Links to the left for more details.
Only the Type 1 & 3 Kits are available for this generator. Clicking on the Yes link will allow you that kit to your shopping cart.
Accessories can be ordered using this link: ACCESSORIES
Generator Model Numbers
Type 1 Kit
Type 2 Kit
Type 3 Kit
Type 4 Kit

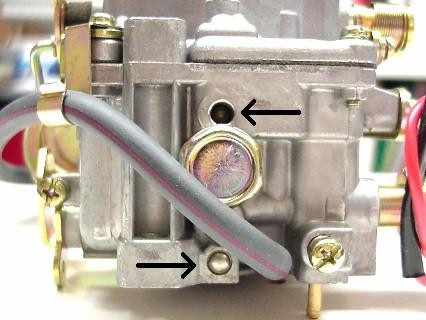

The Type 1 and Type 3 kits for this engine require a little better than average mechanical skill. The carburetor is removed and the high speed jet, which is pressed in and sealed with a BB type plug, is drill out (upper arrow as shown below). Once drilled, the hole has to be tapped with a standard 3/8-24 hand tap. This can be performed using a vise and a corded or cordless drill The original hole is enlarged so following the passage will keep automatically keep the drill bit straight. The idle mixture screw is removed and a new vacuum fitting is supplied to pick up engine vacuum for the fuel cut-off safety system (lower arrow, aluminum disc is covering the screw. The disc is pried off and the screw is removed).
The Type 2 and Type 4 Kits include an adapter the installs between the carburetor and the air cleaner assembly. Three longer screws are included. The idle mixture screw is also removed, as explained above, for the fuel cut-off safety system.
ORDERING & QUESTIONS
Use your credit card and safely and securely order on-line. Or call our office toll free at :1-800-553-5608Monday thru Friday
9:00 am - 4:30 pm
You can place your order over the phone if you feel more comfortable doing that or if you would like to speak with a company representative to answer any further questions you may have.
Please check our BASIC INFO page first. 1-800-553-5608
